UV Vis

  • Model IPS-4 Integrated Photometric Spectrometer
    IPS-4 Integrated Photometric Spectrometer

    The IPS-4 is a huge step forward in capability and reliability for process spectrophotometers. It is capable of measuring up to eight wavelengths in a gas or liquid phase sample.

    Keep Reading
  • Model 888-Sulfur Recovery Tail Gas Analyzer
    888 Sulfur Recovery Tail Gas Analyzer

    AMETEK Process Instruments has been the leader in tail gas analysis for over 40 years-with more than 1,100 installed 880 NSL analyzers and more than 100 million hours of run time.

    Keep Reading
  • Model 900 Air Demand Analyzer
    900 Tail Gas-Air Demand Analyzer

    In the past, conventional Claus sulfur recovery processes were adequately controlled on the basis of ratio or excess process air. However, the development of new and modified sulfur recovery processes has dramatically changed the analytical requirements placed on the tail gas analyzer. These applications require accurate chemical concentration data over wide dynamic ranges. Selective oxidation processes may require the analyzer to control the H2S/ SO2 ratio at values ranging from 1:7 to greater than 10:1. In addition, there is an increased need to provide reliable process data during upset conditions (to 5% H2S or SO2), to ensure correct response to such conditions. Data on COS and CS2 concentrations are also increasingly used to monitor catalyst and overall sulfur plant performance.

    Keep Reading
  • Model 910 Hot/Wet Multi Gas Mass Flow CEM
    910 Hot/Wet Multi Gas Mass Flow CEM

    The 910 is specifically configured for monitoring the stack emissions of multiple pollutants on a mass rate basis.

    Keep Reading
  • Model 914 Continuous Emission Monitoring System
    914 Continuous Emission Monitoring System

    The system uses dry extractive sampling techniques designed to meet government regulations for all types of compliance monitoring.

    Keep Reading
  • Model 919 Hot/Wet Single Gas Analyzer
    919 Hot/Wet Gas Analyzer

    The 919 is specifically configured for monitoring stack emissions on a concentration basis. With the addition of an optional zirconium oxide sensor, the Model 919 is capable of monitoring oxygen.

    Keep Reading

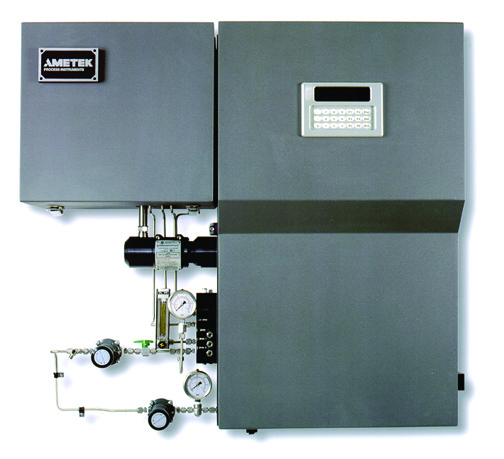

  • Model 920 Hot/Wet Multi Gas CEM
    920 Hot/Wet Multi Gas Analyzer

    The 920 is specifically configured for monitoring the stack emissions of multiple pollutants on a concentration basis. It measures as many as five pollutants at stack conditions. With the addition of an optional zirconium oxide sensor, the 920 is capable of monitoring oxygen.

    Keep Reading
  • Model 930 H2S in Sulfur Pit Analyzer
    930 H2S in Sulfur Pit Analyzer

    In many sulfur recovery units, produced sulfur is stored in liquid form in sulfur pits. Operators are increasingly aware that sulfur pits present potential danger to plant personnel and overall plant safety. It is therefore critically important to monitor H2S in the vapour space of sulfur pits to ensure that it remains below the Lower Explosive Limit (LEL) (4.3% by volume).

    Keep Reading
  • Model 931 Single Gas H2S Analyzer (opt. + H2 and HC)
    931 Single Gas H2S Analyzer

    The 931 uses a sophisticated UV-VIS photometer to measure any single UV-absorbing gas species for process monitoring and control. Additional IR and thermal conductivity sensors capable of detecting non-UV absorbing species, such as CO2 and H2 can be incorporated into the design.

    Keep Reading
  • Model 932 Multi Gas H2S Analyzer (opt. + H2 and HC)
    932 Multi Gas H2S Analyzer

    A compact, reliable process analyzer is required to properly monitor and control most modern chemical processes. Whether you are performing feed-forward control, feed-back control, or quality monitoring, an on-line process analyzer is required for optimal control.

    Keep Reading
  • Model 933 H2S in Natural Gas
    933 H2S in Natural Gas Analyzer

    The 933 is a unique UV-based photometric analyzer system for H2S analysis when present in concentrations below 100 ppm in natural gas and other applications. The analyzer responds quickly to changes in H2S concentration and it quickly self-recovers from extreme upset conditions.

    Keep Reading
  • Model 934 Sensor Specific Gas Analyzer
    934 Sensor Specific Gas Analyzer

    The 934 is a rugged, analyzer adapted from the 931/932 UV analyzer platform for measurement of Hydrogen in Tail Gas Treating Units (TGTU) where the UV (H2S) is not required.

    Keep Reading
  • Model 9900RM Gas Analyzer
    9900RM Gas Analyzer

    The new Model 9900RM is a single or multi-component gas analyzer that can be used alone or as an integrated part of a CEM (continuous emissions monitoring) system. The analyzer is 19” rack-mountable and supports Modbus/RS485 and Ethernet connectivity.

    Keep Reading
